Drum mower

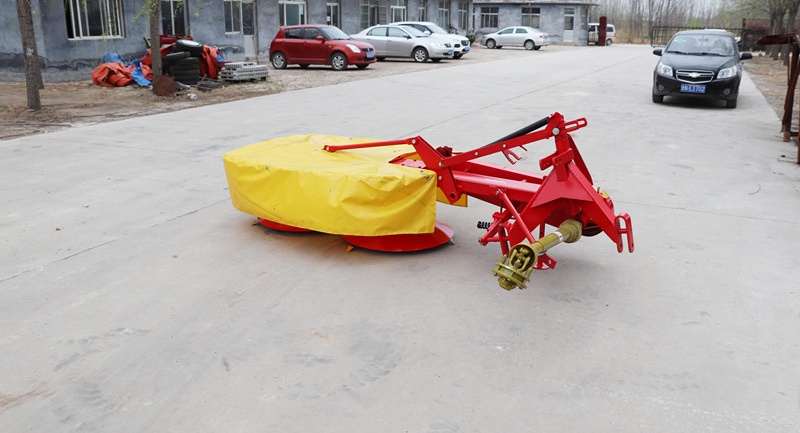

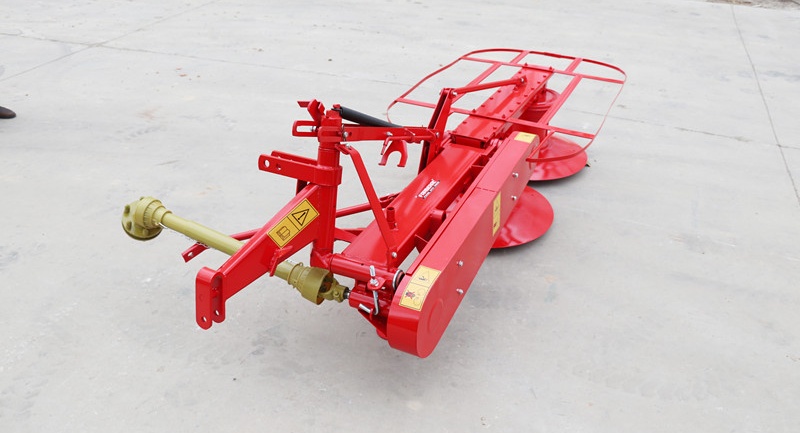

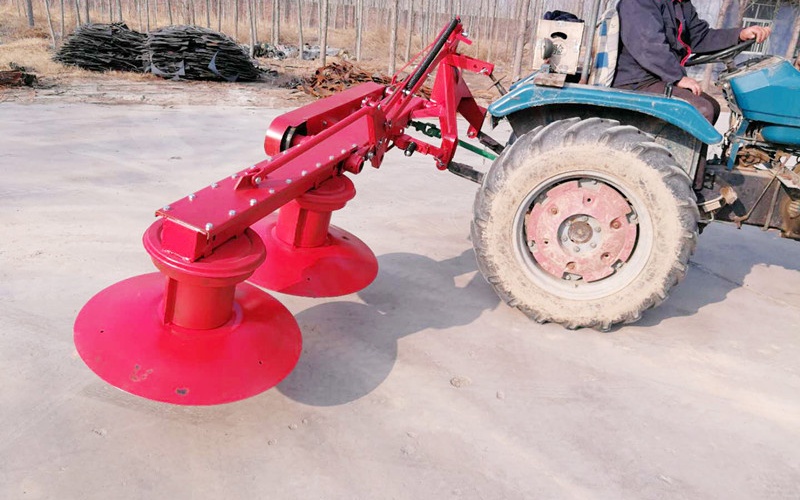

The DM165 mower is a two—drum mower. Each drum has three knives, which can be changed quickly with a simple tool. The hay cut by the knives is carried between the drums and put in a loosely laid swath. Three V—belts transmit power to the input gear shaft, then to the main drive shaft, which in turn drives the drums through the bevel gears.
A breakaway device is incorporated on this machine, which automatically operates when the mower hits an obstruction. This protects the drums from damage.
Move at High Speeds.
No Hydraulics Necessary (unless using Hydraulic Conversion Kit).
Few Moving Parts & Easy Maintenance.
Great Alternative to Disc & Sickle bar Mowers for Small Hay Producers.
Easily Cuts Through Tall & Thick Grass.
Designed for Reliable Mowing in All Conditions.
|
Model |
DM135 |
DM165 |
|
Cutting Width |
135cm |
165cm |
|
Cutting Height |
3cm |
3cm |
|
Transport Width |
95cm |
140cm |
|
Transport Length |
265cm |
285cm |
|
Height |
110cm |
110cm |
|
Weight |
340kg |
390kg |
|
Drums |
2pcs |
2pcs |
|
Blades |
6pcs |
6pcs |
|
P.T.O Speed |
540rpm |
540rpm |
|
P.T.O Drive Shaft |
with |
with |
|
Mounted Cat |
Cat1 |
Cat1 & 2 & 3 |
|
Tractor power |
≥20hp |
≥28hp |
DM165割草机是一台双鼓式割草机。每个鼓都有三把割草刀，可以用简单的工具快速更换。被刀子切断的牧草放在两鼓之间，一个松散的地方。三条三角带带将动力传送到输入齿轮轴上，然后转到主传动轴上，进而驱动鼓通过伞齿轮。
鼓式割草机上有一个分离装置，当割草机碰到障碍物时自动运转。这样可以保护鼓不受伤害。
|
型号 |
DM135 |
DM165 |
|
割草宽度 |
135cm |
165cm |
|
割茬高度 |
3cm |
3cm |
|
运输宽度 |
95cm |
140cm |
|
运输长度 |
265cm |
285cm |
|
高度 |
110cm |
110cm |
|
重量 |
340kg |
390kg |
|
刀盘数量 |
2pcs |
2pcs |
|
刀片数量 |
6pcs |
6pcs |
|
传动轴转速 |
540rpm |
540rpm |
|
是否带传动轴 |
是 |
是 |
|
悬挂类型 |
I 类 |
I 类II类和III类 |
|
拖拉机马力 |
≥20hp |
≥28hp |
