特性 :

1 采用高效率电脑伺服马达，控制送料长度进行精度送料，设定简单。

2 适合 1.0-6.0mm 厚之广泛材料，针对节省空间及容易操作而设计。

3 适合各类之生产，更换料卷迅速，节省时间。

4 料卷装置，使用油压扩张，材料送至冲模内，无需人工入料。省人力，安全高。

5 简洁之构造设计，维修保养，管理均简单化，并加强操作者作业之安全性。

选购配置：1 液压上料小车。2 液压减料机。

Features:

A.High efficiency computer servo wiht easy set operation can realize exact feeding through controling the feeding

lenght.

B.The machine handles wide range of material thickness from 1.0 to6.0mm.Its compact structure saves.space and makes

the operation easier.

C.This machine provides flexible operation capacity and can change material coil swift,shortening the coil change time.

D.The hydraulic expansion is applied to coil device.The material is feed into punch die without operator's

asistance,which can obtain maximum safety and save labor force.

E.Simplified structure not only provides convenient maintenace and operation control but also enhances the woking

safety for operators.

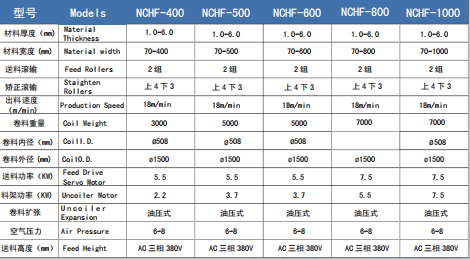

规格 :(Specificatilons)

矫正能力表 STraigtenung Performance
