PRODUCT FEATURES:1.Precision ground and hardened bed ways2. The spindle is supported with precision roller bearings3. Head stock gears are made of high quality steel, ground and hardened4. Easy operating speed change levers5. Easy operating gear box has various feeds and thread cutting function6. Rapid feed structure is available on Apron.
|
MODEL |
UNIT |

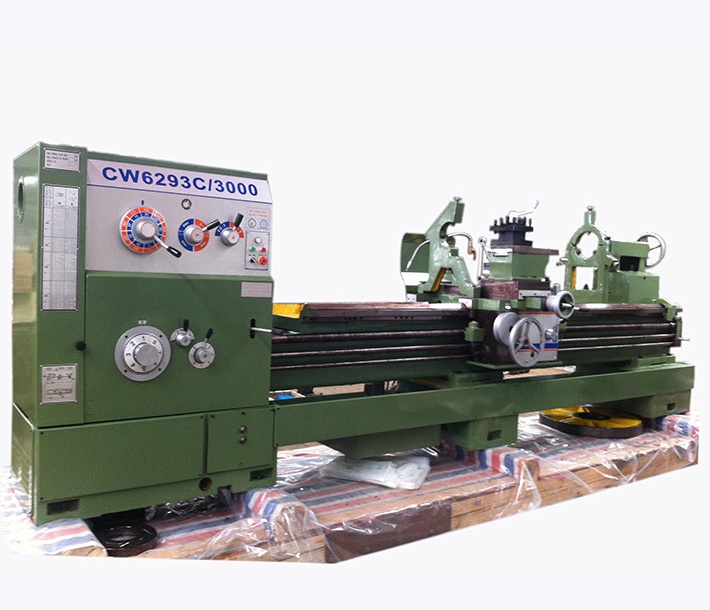

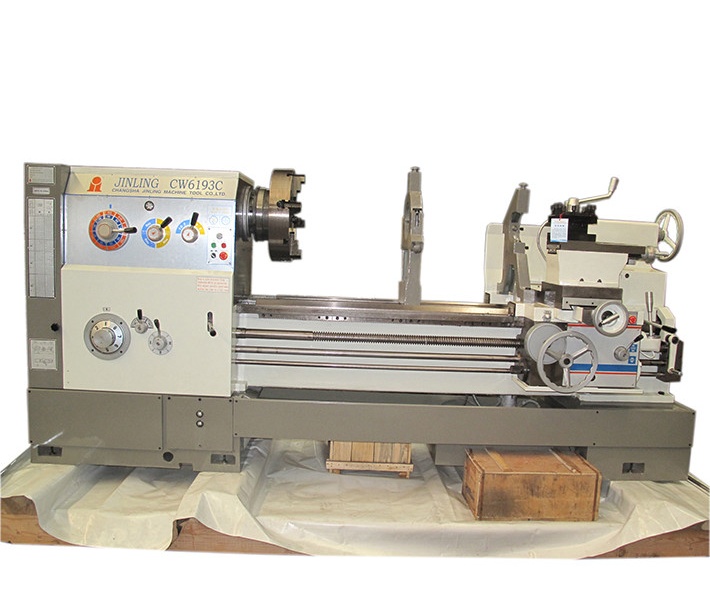

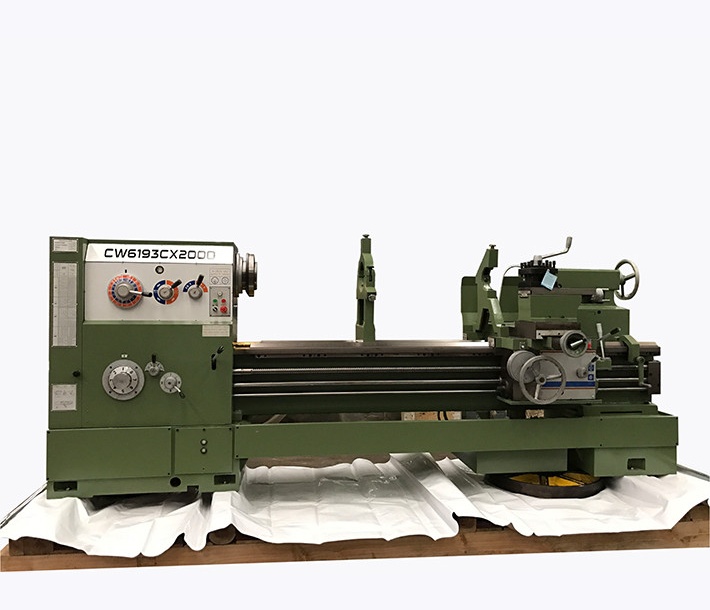

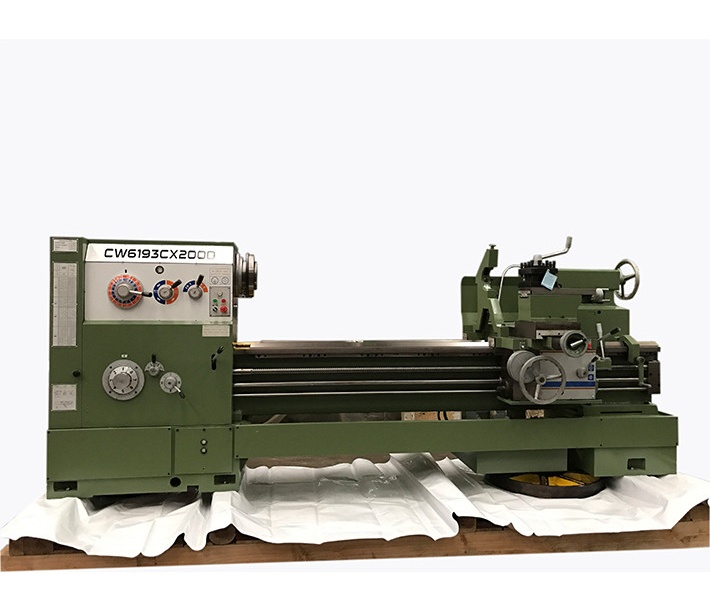

CW61(2)93C |
|
|
Swing over bed |
mm |
930 |
|
|
Swing in gap(only for gap lathe CW6293C) |
|
1100 |
|
|
Swing over cross slide |
mm |
650 |
|
|
Distance between centers |
mm |
1000,1500,2000,3000,4500,6000 |
|
|
Spindle nose |
|
C11,D11 for optional |
|
|
Spindle bore |
mm |
￠105,￠130 for optional |
|
|
Spindle speeds |
rpm/steps |
10-800/18 |
|
|
Cross slide travel |
mm |
480 |
|
|
Top rest travel |
mm |
225 |
|
|
Rapid travel |
mm/min |
Longitudinal Axe Z: 3200 Cross Axe X: 1900 |
|
|
Quill diameter |
mm |
100 |
|
|
Quill travel |
mm |
260 |
|
|
Quill taper |
|
MT6 |
|
|
Bed width |
mm |
550 |
|
|
Metric threads |
mm/kinds |
1-240/53 |
|
|
Inch threads |
tpi/kinds |
30-2/31 |
|
|
Module threads |
mm/kinds |
0.25-60/46 |
|
|
Diametrical pitch threads |
tpi/kinds |
60-0.5/47 |
|
|
Main motor power |
kw |
11 |
