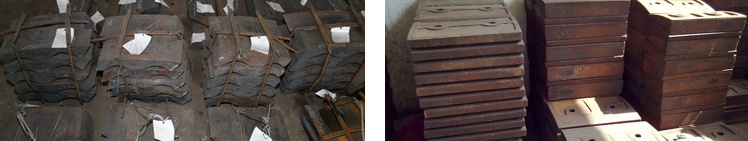

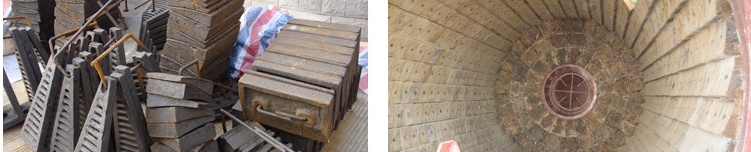

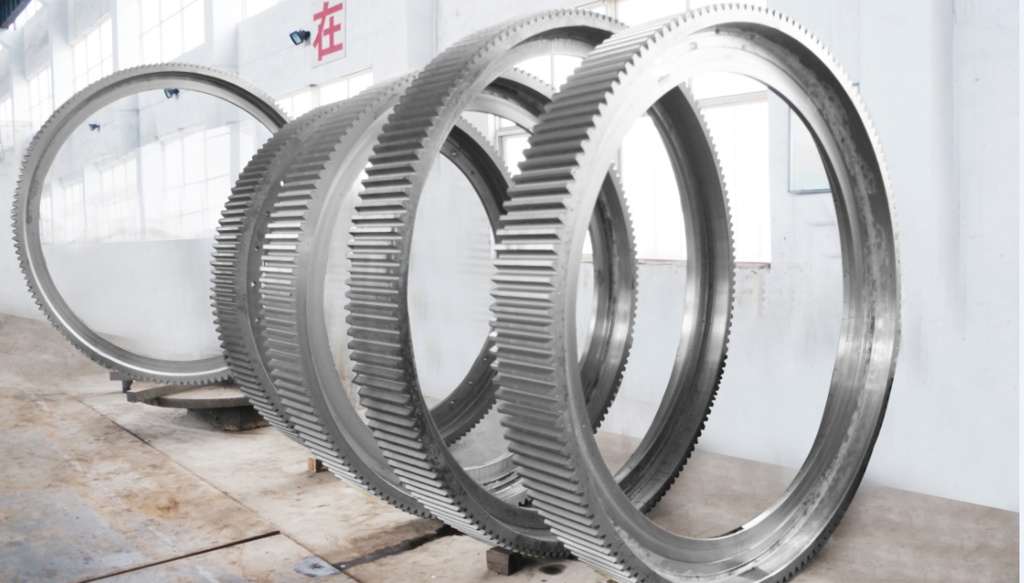

1 产品特点
该系列球磨机是在老式球磨机的基础上改进而产生的一种新型球磨机，具有以下特点：
1.1 选用大直径双列调心滚子轴承，代替原来的滑动轴承，使摩擦力大大降低，启动容易，比老式球磨机节省功耗10-15%；
1.2 保留普通球磨机的端盖结构形式，大口径进出料口，处理量大。
2 订货说明
用户选用时注明球磨机旋向，排料方式，还可以根据用户要求，改变轴承型号。
1 Product features
This series of ball mill is a new type of ball mill improved on the bases of old mill. It has the following features.
1.1 Large diameter double row self-aligning roller bearings are adopted instead of the original sliding bearing, greatly reducing the friction and making the mill start up easily. It saves power 10-15% than the old mill.
1.2 It maintains the end cover structure of common mill, with large-caliber feeding and discharging openings, which realizes large processing capacity.
2 Notes for ordering
While making selection, the customer should specify the rotating direction and discharging mode of the ball mill. The bearing type can be changed as required by the customer.
GM系列直筒滚动轴承球磨机技术参数 Technical Parameters of GM series rolling bearing ball mill
GM系列直筒滚动轴承球磨机技术参数 Technical Parameters of GM series rolling bearing ball mill
|
型号Model |
规格Standards |
筒体转速(r/min) Revolution of the shell |
装球重量(t) Weight of balls |
给料粒度(mm) Feeding size |
产量(t/h) Output |
配套电动机Cooperate Motor |
外形尺寸(mm) Dimension (L×W×H) |
重量(kg) Weight |
生产能力参考 Production capacity (t/d) |
|
|
型号Model |
功率(kw) Power |
|||||||||
|
GM0912 |
Φ900×1200 |
41.6 |
1.1 |
25 |
0.3~0.9 |
Y180L-8 |
11 |
3843×1850×1400 |
4210 |
5-10 |
|
GM0921 |
Φ900×2100 |
41.6 |
1.8 |
25 |
0.6~1.5 |
Y180L-6 |
15 |
4743×1850×1400 |
6660 |
10-15 |
|
GM0933 |
Φ900×3300 |
41.6 |
2.8 |
25 |
0.9~2.3 |
Y225M-6 |
30 |
5943×1850×1400 |
7770 |
15-20 |
|
GM1224 |
Φ1200×2400 |
35.1 |
4.0 |
25 |
1.6~4.1 |
Y280S-8 |
37 |
5540×2300×1850 |
10020 |
20-25 |
|
GM1228 |
Φ1200×2800 |
35.1 |
4.6 |
25 |
1.9~4.8 |
Y280M-8 |
45 |
5940×2300×1850 |
10935 |
20-50 |
|
GM1232 |
Φ1200×3200 |
35.1 |
5.3 |
25 |
2.2~5.5 |
Y280M-8 |
45 |
6340×2300×1850 |
11230 |
35-55 |
|
GM1244 |
Φ1200×4400 |
35.1 |
7.3 |
25 |
3.0~7.5 |
Y135S-8 |
55 |
7540×2300×1850 |
13210 |
60-80 |
|
GM1324 |
Φ1300×2400 |
30.2 |
4.5 |
25 |
1.5~3.5 |
Y280S-8 |
37 |
5035×2370×1880 |
10210 |
30-60 |
|
GM1328 |
Φ1300×2800 |
30.2 |
5.2 |
25 |
2.0~4.5 |
YR280S-8 |
55 |
5435×2370×1880 |
11290 |
50-80 |
|
GM1334 |
Φ1200×3400 |
30.2 |
6.5 |
25 |
2.2~5.0 |
Y280M-8 |
75 |
6035×2370×1880 |
13117 |
60-90 |
|
GM1524 |
Φ1500×2400 |
30.7 |
7.0 |
25 |
5.0~11.0 |
YR280S-8 |
55 |
6830×2930×2060 |
15430 |
70-100 |
|
GM1530 |
Φ1500×3000 |
30.7 |
9.0 |
25 |
5.5~13.5 |
JR117-8 |
80 |
7430×2930×2060 |
16843 |
100-150 |
|
GM1533 |
Φ1500×3300 |
30.7 |
10.0 |
25 |
7.0~15.5 |
JR125-8 |
95 |
7730×2930×2060 |
17849 |
110-170 |
|
GM1536 |
Φ1500×3600 |
30.7 |
11.0 |
25 |
8.0~17.0 |
JR125-8 |
95 |
8030×2930×2060 |
18649 |
120-200 |
|
GM1542 |
Φ1500×4200 |
30.7 |
12.5 |
25 |
3.0~17.0 |
JR126-8 |
110 |
8630×2930×2060 |
19330 |
150-200 |
|
GM1545 |
Φ1500×4500 |
30.7 |
13.5 |
25 |
3.3~20.0 |
JR126-8 |
110 |
8930×2930×2060 |
20000 |
180-250 |
|
GM1557 |
Φ1500×5700 |
30.7 |
17.0 |
25 |
4.0~21.5 |
JR127-8 |
130 |
10130×2930×2060 |
23597 |
230-300 |
|
型号Model |
规格Standards |
筒体转速(r/min) Revolution of the shell |
装球重量(t) Weight of balls |
给料粒度(mm) Feeding size |
产量(t/h) Output |
配套电动机Cooperate Motor |
外形尺寸(mm) Dimension (L×W×H) |
重量(kg) Weight |
生产能力参考 Production capacity (t/d) |
|
|
型号Model |
功率(kw) Power |
|||||||||
|
GM1563 |
Φ1500×6300 |
30.7 |
19.0 |
25 |
8.0~17.0 |
JR128-8 |
155 |
10730×2930×2060 |
24390 |
250-350 |
|
GM1830 |
Φ1830×3000 |
25.04 |
13.0 |
25 |
3.0~17.0 |
JR127-8 |
130 |
9525×3960×2250 |
29490 |
180-200 |
|
GM1834 |
Φ1830×3400 |
25.04 |
14.0 |
25 |
3.3~20.0 |
JR128-8 |
155 |
9925×3960×2250 |
30390 |
180-250 |
|
GM1836 |
Φ1830×3600 |
25.04 |
15.0 |
25 |
4.0~21.5 |
JR128-8 |
155 |
10125×3960×2250 |
31600 |
180-300 |
|
GM1840 |
Φ1830×4000 |
25.04 |
17.0 |
25 |
4.5~24.0 |
JR128-8 |
155 |
10525×3960×2250 |
32700 |
200-350 |
|
GM1842 |
Φ1830×4200 |
25.04 |
18.0 |
25 |
5.0~25.0 |
JR128-8 |
155 |
10725×3960×2250 |
33490 |
250-400 |
|
GM1844 |
Φ1830×4400 |
25.04 |
19.0 |
25 |
5.2~26.0 |
JR136-8 |
180 |
10925×3960×2250 |
34210 |
280-400 |
|
GM1852 |
Φ1830×5200 |
25.04 |
21.0 |
25 |
6.5~32.5 |
JR136-8 |
180 |
11725×3960×2250 |
37715 |
300-450 |
|
GM1864 |
Φ1830×6400 |
25.04 |
27.0 |
25 |
8.0~40.0 |
JR137-8 |
210 |
12925×3960×2250 |
42440 |
350-500 |
|
GM2122 |
Φ2100×2200 |
23.8 |
15.0 |
25 |
3.0~22.0 |
JR127-8 |
130 |
7775×4060×3400 |
38793 |
200-300 |
|
GM2130 |
Φ2100×3000 |
23.8 |
20.0 |
25 |
4.0~30.0 |
JR136-8 |
180 |
8475×4060×3400 |
41965 |
300-400 |
|
GM2136 |
Φ2100×3600 |
23.8 |
21.0 |
25 |
5.0~37.0 |
JR137-8 |
210 |
9225×4060×3400 |
44551 |
350-450 |
|
GM2140 |
Φ2100×4000 |
23.8 |
22.0 |
25 |
5.2~39.0 |
JR138-8 |
245 |
9475×4060×3400 |
46697 |
400-600 |
|
GM2145 |
Φ2100×4500 |
23.8 |
25.0 |
25 |
5.8~44 |
JR138-8 |
280 |
9875×4060×3400 |
50650 |
450-670 |
|
GM2151 |
Φ2100×5100 |
23.8 |
28.0 |
25 |
6.6~50 |
JR138-8 |
280 |
10475×4060×3400 |
53426 |
500-750 |
|
GM2155 |
Φ2100×5500 |
23.8 |
30.0 |
25 |
7~54 |
JR138-8 |
320 |
10900×4060×3400 |
55276 |
550-820 |
|
GM2160 |
Φ2100×6000 |
23.8 |
33.0 |
25 |
7.5~58 |
JR138-8 |
320 |
10900×4060×3400 |
57587 |
600-900 |
|
GM2164 |
Φ2100×6400 |
23.8 |
35.0 |
25 |
8~62 |
JR158-8 |
380 |
12400×4060×3400 |
59500 |
640-950 |
|
GM2170 |
Φ2100×7000 |
23.8 |
38.0 |
25 |
9~68 |
JR158-8 |
380 |
13000×4060×3400 |
62300 |
700-3000 |
|
GM2436 |
Φ2400×3600 |
23.0 |
26.6 |
25 |
6.5~82.0 |
JR138-8 |
280 |
9770×5005×3970 |
63684 |
480-700 |
|
GM2444 |
Φ2400×4400 |
23.0 |
32.5 |
25 |
8.0~100 |
JR158-8 |
380 |
10570×5005×3970 |
72284 |
500-800 |
|
GM2736 |
Φ2700×3600 |
21.7 |
34.0 |
25 |
15.0~115 |
JR158-8 |
400 |
10575×5610×4500 |
88400 |
550-850 |
|
GM2742 |
Φ2700×4200 |
21.7 |
40.0 |
25 |
17.5~135 |
JR1512-8 |
400 |
11175×5610×4500 |
90420 |
600-900 |
|
GM3230 |
Φ3200×3000 |
18.7 |
44.0 |
25 |
50.0~90 |
TDMK500-36 |
500 |
11000×7200×5700 |
12400 |
1200-1500 |
|
GM3245 |
Φ3200×4500 |
18.7 |
65.0 |
25 |
100~145 |
TDMK630-36 |
630 |
13000×7200×5700 |
145000 |
2000-2500 |
