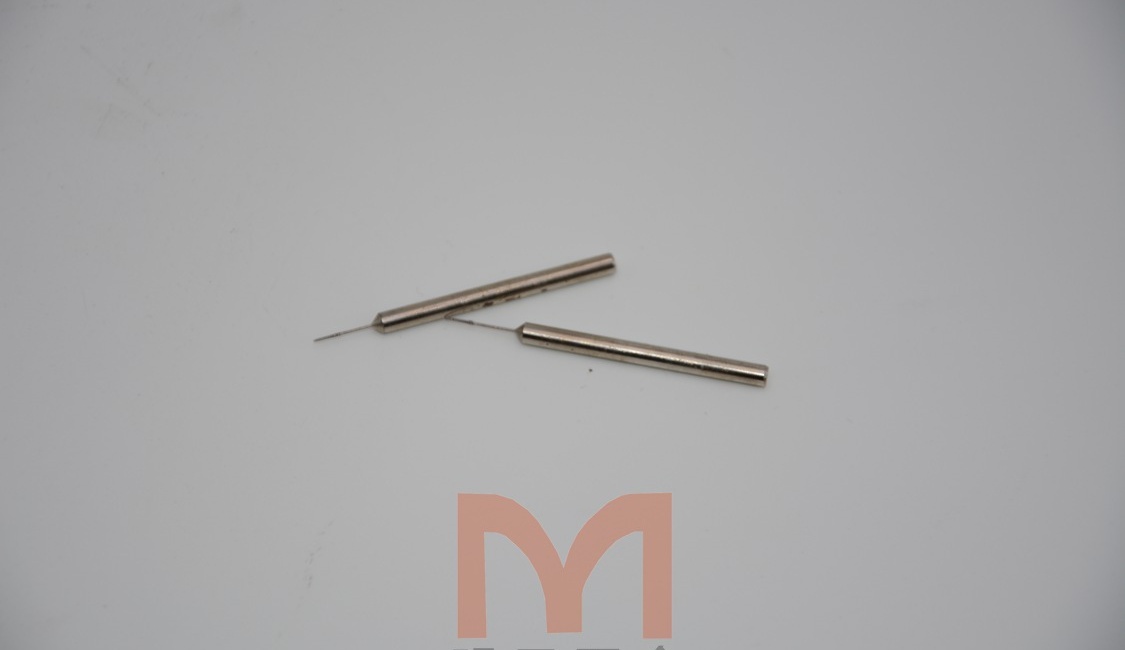

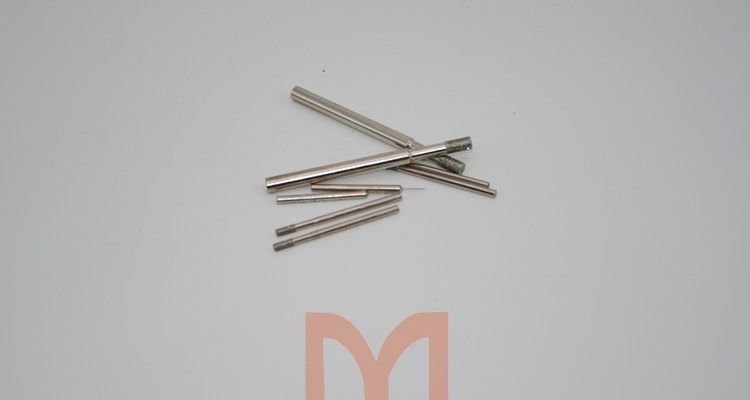

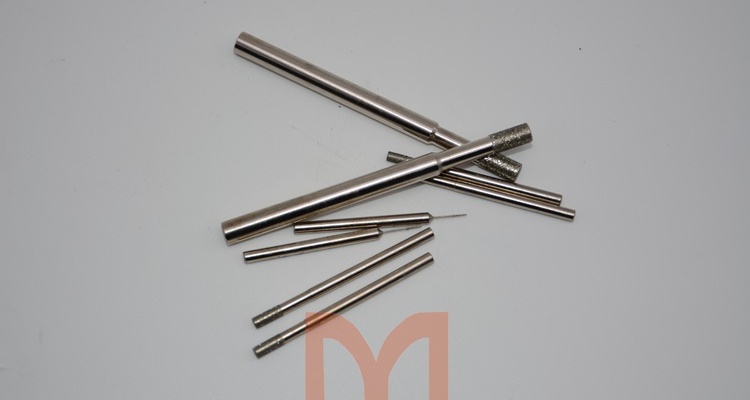

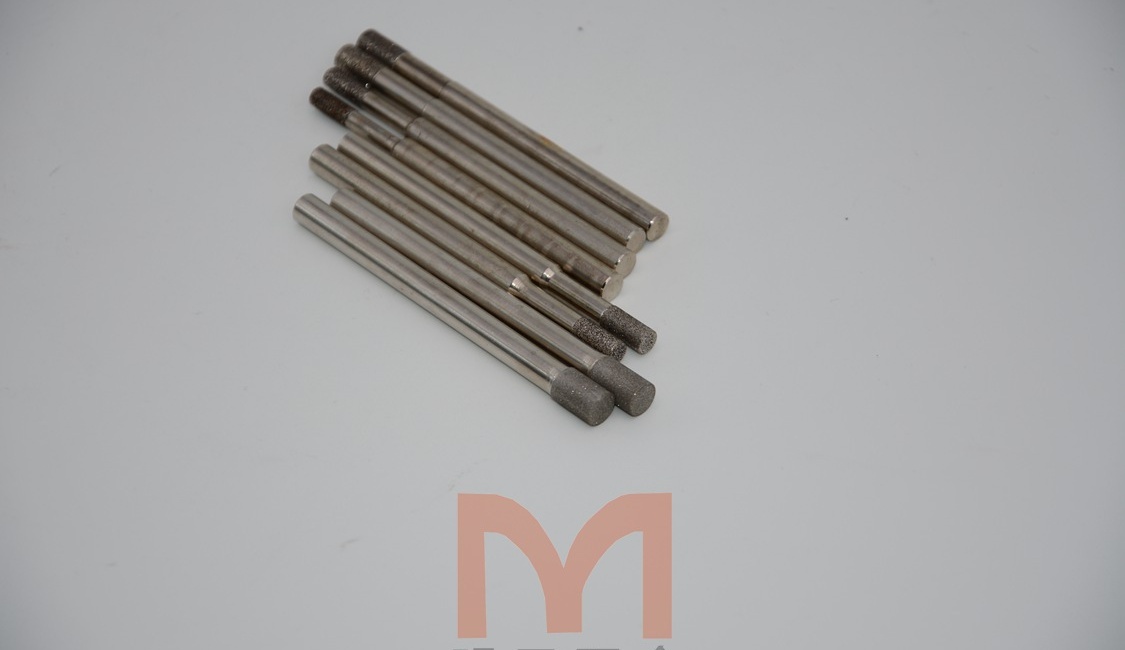

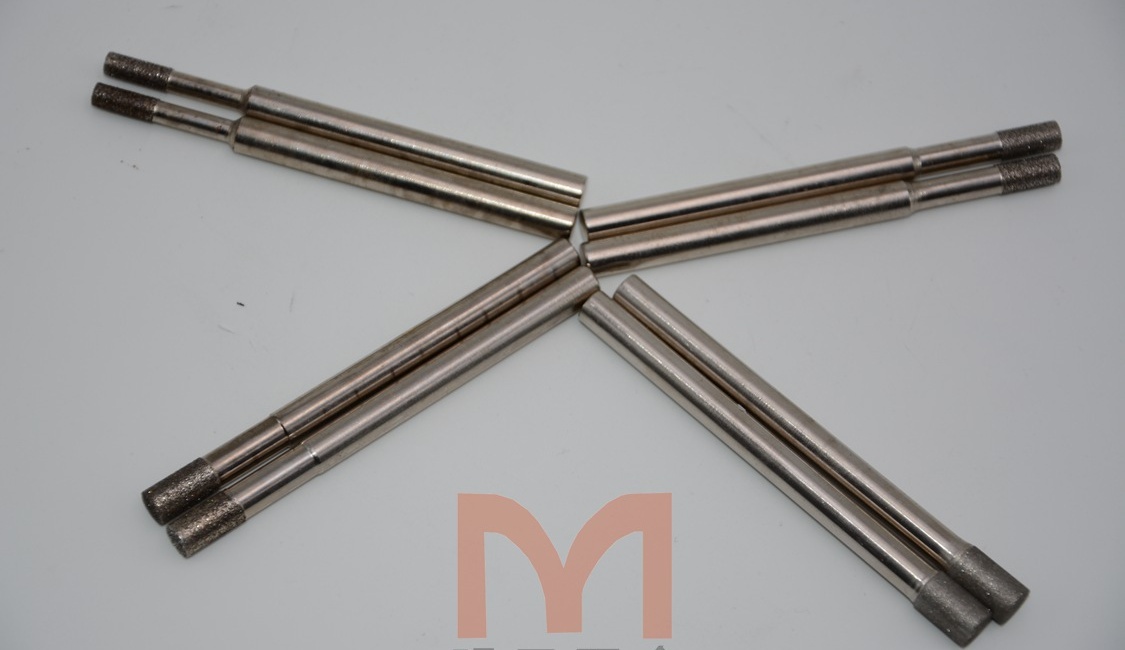

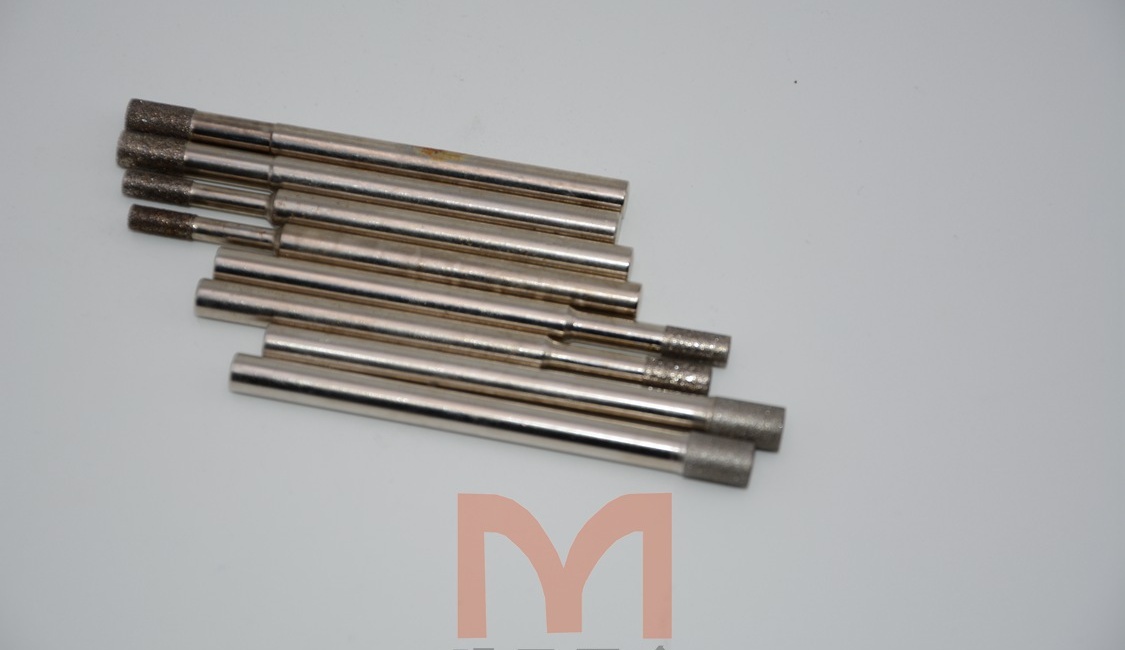

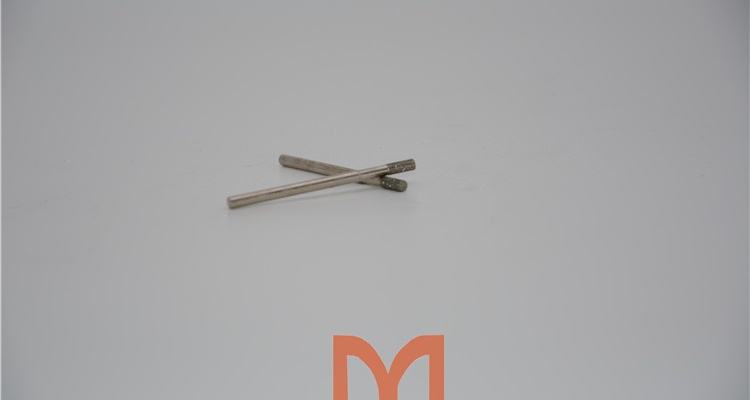

配合内孔研磨机使用,可用于内径研磨，如陶瓷、蓝宝石、玻璃及超硬合金之孔径精细研磨，氮化硼（CBN）精密研磨棒，则用于高硬度之碳钢及铬合金钢精细研磨。可使架后的内孔,更高业度。采用合金轴径，因此刚性特强，高精度加工机**合用。
主要用途：钻石内孔研磨砂轮，超硬合金之研削加工氮化硼内孔研磨砂轮，各种工具钢，合金钢（HRC50-70）硬度之研削加工，粒度根据客户要求，订货时请注明SDC或CBN

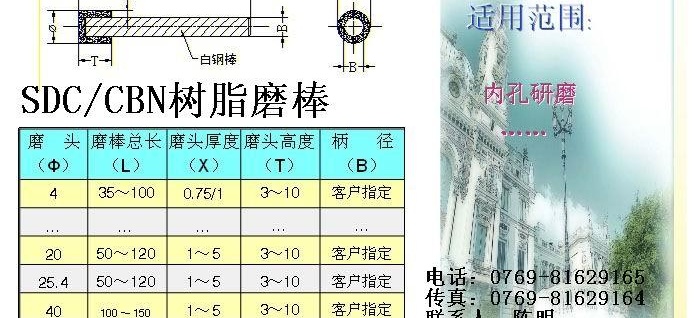

编号/Orderno. | ￠D | T | N | L | ￠B | 粒度 | |
钻石/Diamond | 氮化硼/CBN | ||||||
ID-3004 | IB-3004 | 0.4 | 2 | 5 | 45 | 3.0 | #400 |
ID-3005 | IB-3005 | 0.5 | 2 | 5 | 45 | 3.0 | #400 |
ID-3006 | IB-3006 | 0.6 | 3 | 5 | 45 | 3.0 | #200 |
ID-3007 | IB-3007 | 0.7 | 3 | 8 | 45 | 3.0 | #200 |
ID-3008 | IB-3008 | 0.8 | 3 | 8 | 45 | 3.0 | #200 |
ID-3009 | IB-3009 | 0.9 | 4 | 8 | 45 | 3.0 | #200 |
ID-3010 | IB-3010 | 1.0 | 5 | 8 | 45 | 3.0 | #200 |
ID-3015 | IB-3015 | 1.5 | 5 | 8 | 45 | 3.0 | #150 |
ID-3020 | IB-3020 | 2.0 | 5 | 12 | 45 | 3.0 | #150 |
ID-3025 | IB-3025 | 2.5 | 5 | 15 | 45 | 3.0 | #150 |
ID-3030 | IB-3030 | 3.0 | 5 | 15 | 45 | 3.0 | #150 |
ID-3040 | IB-3040 | 4.0 | 5 | - | 50 | 3.0 | #150 |
ID-3050 | IB-3050 | 5.0 | 8 | - | 50 | 3.0 | #150 |
ID-3060 | IB-3060 | 6.0 | 8 | - | 50 | 3.0 | #150 |
ID-6040 | IB-6040 | 4.0 | 10 | 22 | 80 | 6.0 | #100 |
ID-6050 | IB-6050 | 5.0 | 10 | 22 | 80 | 6.0 | #100 |
ID-6060 | IB-6060 | 6.0 | 10 | 22 | 80 | 6.0 | #100 |
ID-6070 | IB-6070 | 7.0 | 10 | - | 80 | 6.0 | #100 |
ID-6080 | IB-6080 | 8.0 | 10 | - | 80 | 6.0 | #100 |
ID-6090 | IB-6090 | 9.0 | 10 | - | 80 | 6.0 | #100 |
ID-6100 | IB-6100 | 10 | 10 | - | 80 | 6.0 | #100 |
ID-6120 | IB-6120 | 12 | 10 | - | 80 | 6.0 | #100 |
ID-6140 | IB-6140 | 14 | 10 | - | 80 | 6.0 | #100 |
ID-6160 | IB-6160 | 16 | 10 | - | 80 | 6.0 | #100 |
ID-6180 | IB-6180 | 18 | 10 | - | 80 | 6.0 | #100 |
ID-6200 | IB-6200 | 20 | 10 | - | 80 | 6.0 | #100 |
