Universal tool and cutter grinder万能工具磨床（数控）

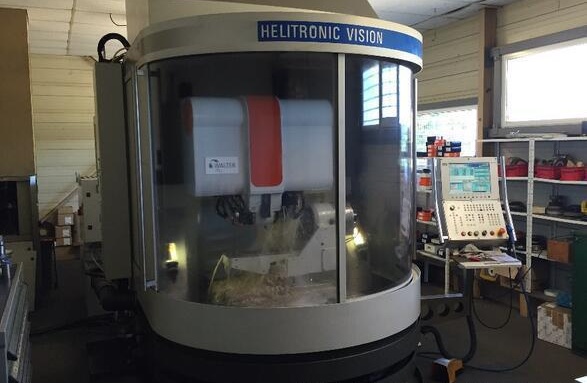

Made by Walter,德国Walter制造,型号Helitronic Vision, serial no.编号690052, 出厂year 2005年, 控制系统control HMC 600 XP

Deion描述:

Suitable for grinding and manufacturing of tools of all kinds.适合生产及修磨各种木工及金属加工刀具

Specifications规格:

控制系统HMC 600 (5 axis), operating system Windows 操作系统XP; Working range 工作范围:

longitudinal traverse 纵向行程(X- axis) 480 mm, vertical traverse 垂直行程(Y-axis) 320 mm, cross traverse 交叉行程(Z-axis) 700 mm, rotary table swivelling range 回转角度(C-axis) +/- 200°, work head spindle 工件座规格ISO 50, max. diameter of workpiece 最大工件直径320 mm, max. length of workpiece for peripheralgrinding 最大磨削工件周边长度370 mm, max. length of workpiece for face grinding 最大工件端面磨削长度320 mm, Precision in linear resolution 线性定位精度0.0001 mm, in radial resolution 圆弧定位精度0.0001°;max. dia. of wheel 最大砂轮直径200 mm, peak performance grinding spindle 磨削轴峰值功率30 kW,grinding spindle speed 磨削轴速度范围0 - 12.000 rpm. Connected load approx. 装机容量约35 kW (400 volts/ 50 Hz), weight approx.重量约7.100 kg, dimensions 体积w x d x h = 3648 x 2490 x 2310 mm, colour 颜色grey RAL 9003 / 7011 / RAL 7043.

Accessories附件:

Control HMC 600 XP,

Software package 1 (cylindrical cutters),

Software package 2 (conical spiral tools sharp edge, corner and full radius),

Software package 3 (drills and step drills),

Software package 4 (Step tools),

Software package 5 (discoid tools),

Software package 6 (woodworking tools),

Software package 7 / 37 (profiles),

Software package 8 (taps)

Software package 13 (reamers),

Software package 16 (warmup program),

Software package 17 (cylindrical grinding),

Software package 23 (torus cutters),

Software package 32 (contours),

Software Heli-flute & Cone "Flute computing program software",槽计算

Software Helidrill,钻头开槽

Software Toolstudio standard and advanced,标准和**版

Software Toolstudio step tools,阶梯

Cooled grinding spindle drive with separate cooler,磨削主轴独立冷却

Probe,探针

Electrostatic mist extractor,r静电油雾分离器,

Pneumatic workpiece clamping,液压夹持工件系统,

Oil collecting pan,集油盘

2 grinding wheel flanges.2根砂轮杆.
