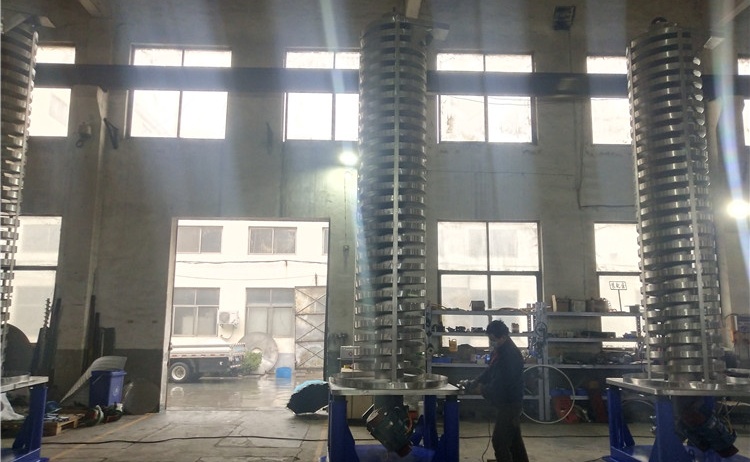

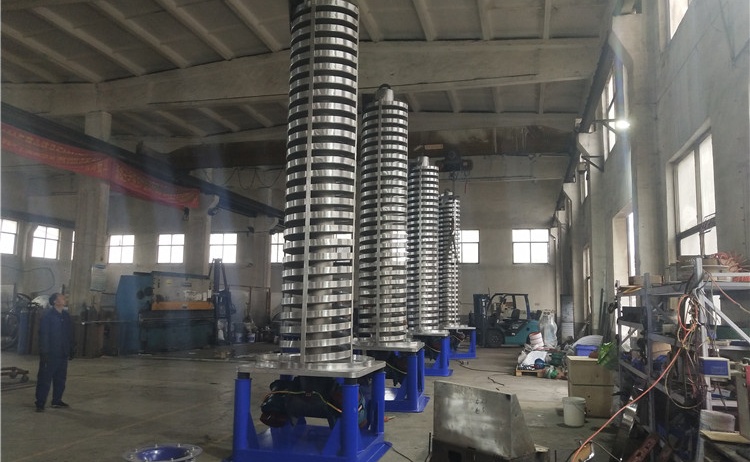

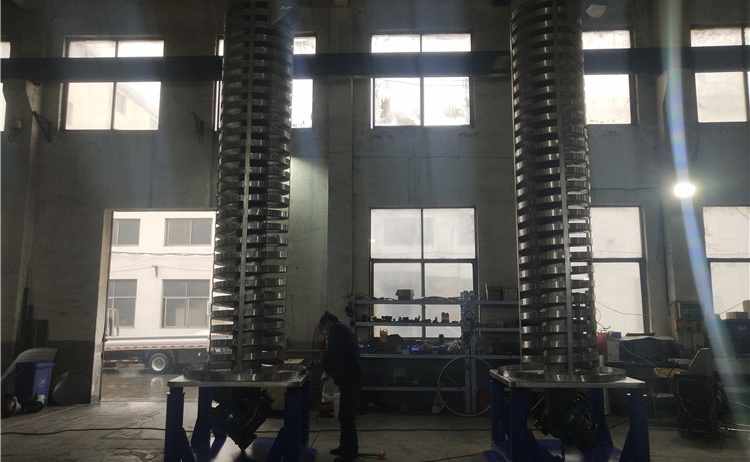

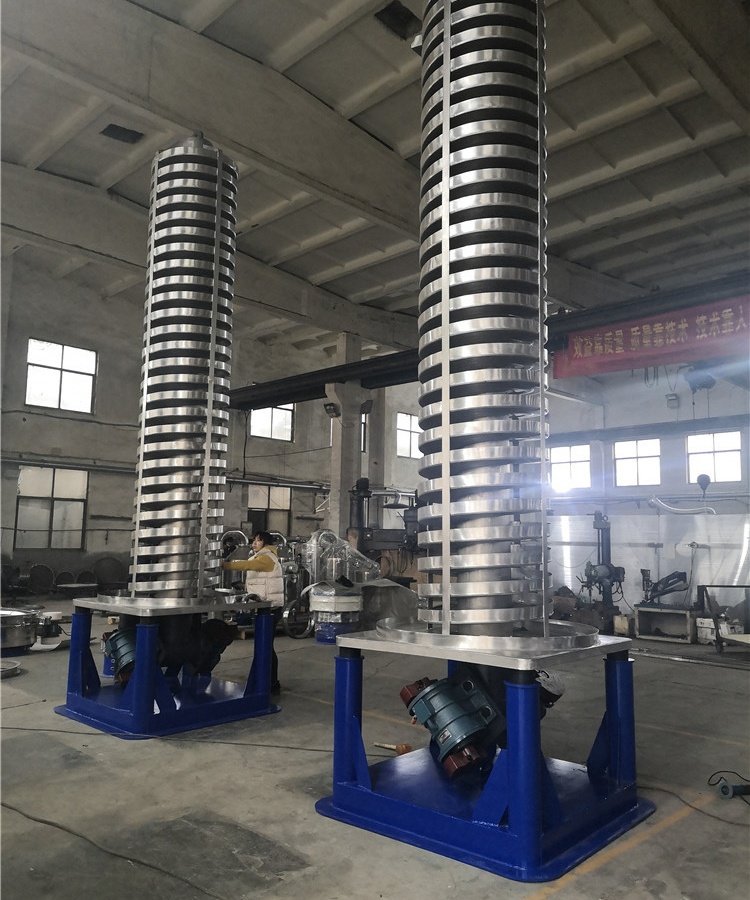

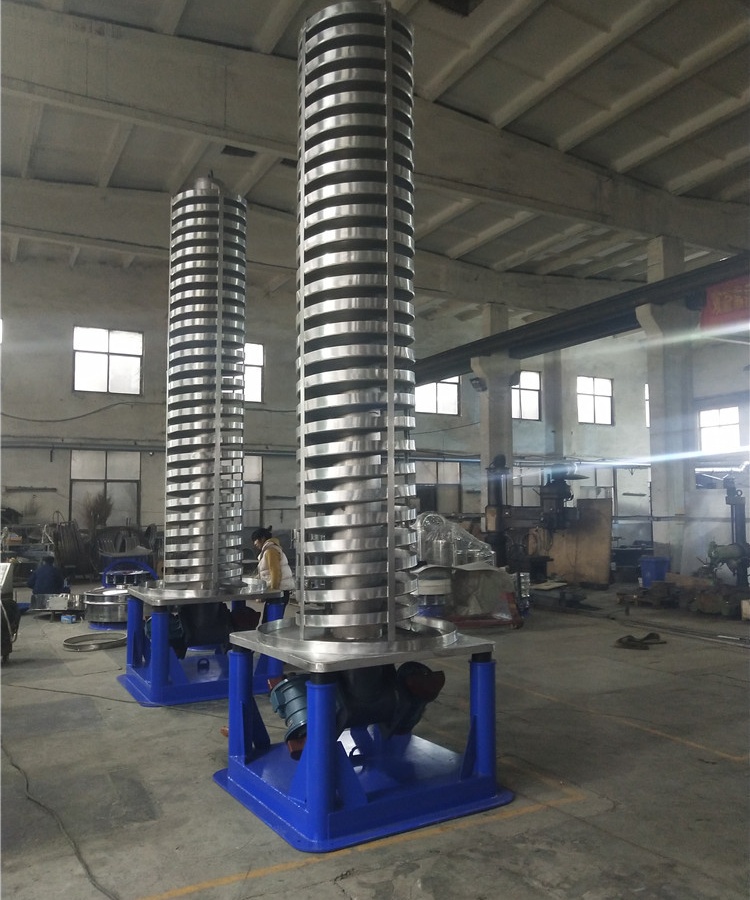

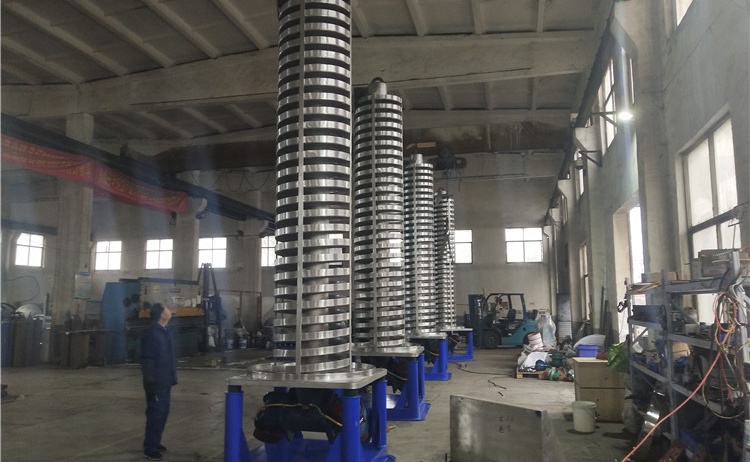

振动垂直提升机Vibrating spiral conveyor

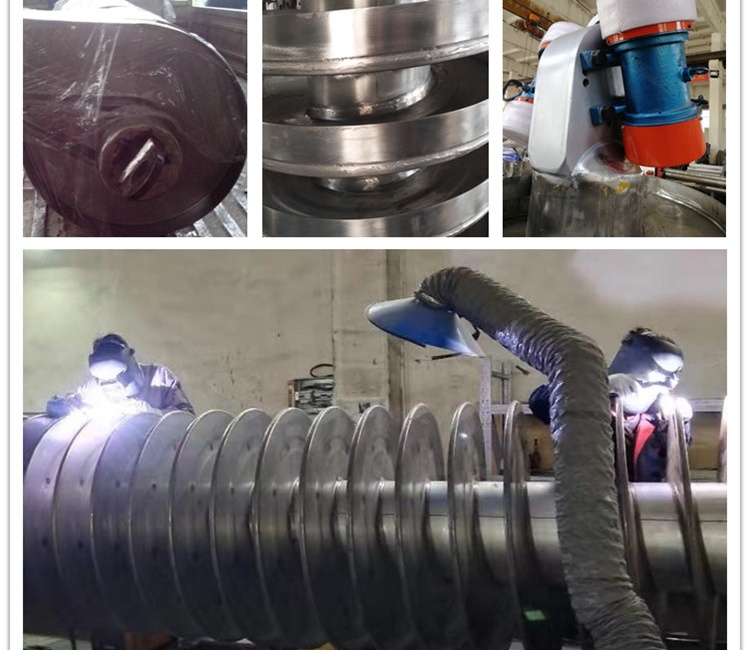

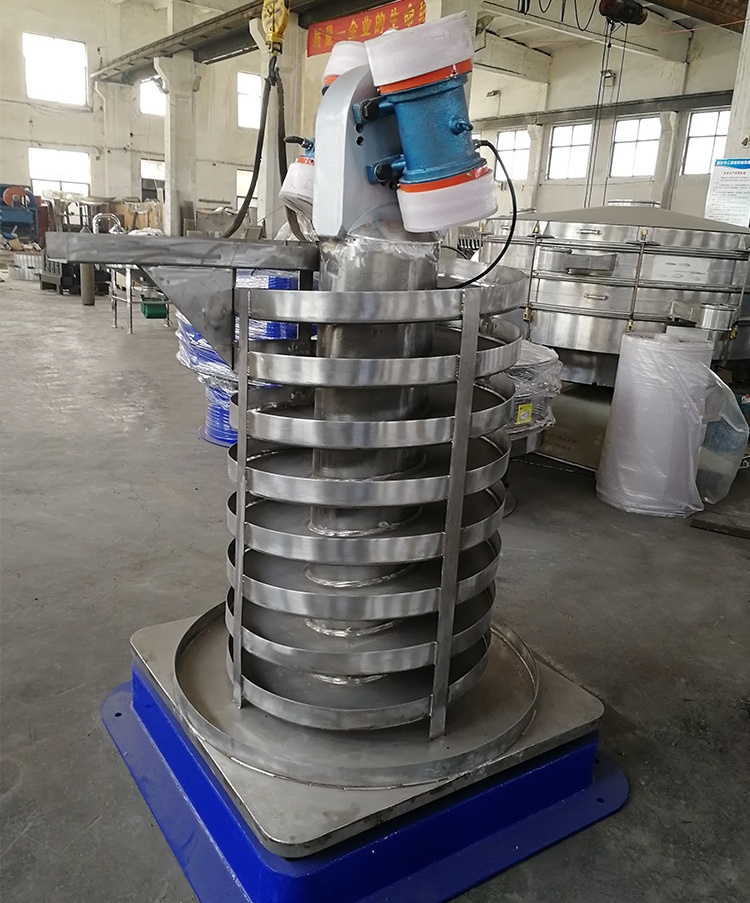

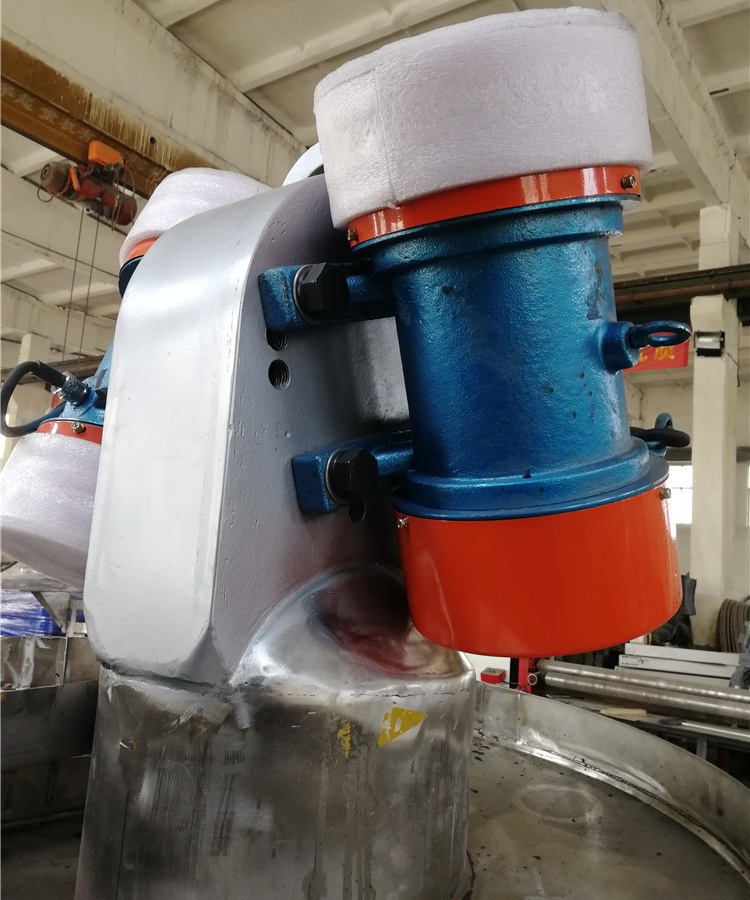

产品概述Product deion 垂直振动提升机采用振动电机作振动源，利用两台振动电机的合成振幅，将物料沿螺旋输送槽向上输送。主要用于提升颗粒状、粉状、块状物料。除具有从下向上提升物料外,还可以完成对物料的干燥和冷却。分为敞开式、封闭式两种结构。并可按照用户需要进行特殊设计。
Vibrating spiral conveyor using vibration motor as a vibration source, the use of two vibration motors synthesis amplitude, the material along the spiral conveyor trough upward delivery. Mainly used to convey the granular, powdery, massive material. In addition to lifting materials from bottom to top, but also can complete the drying and cooling of the material. Divided into open, closed two structures. And in accordance with the needs of users with special design.
产品特点 Product features1.占地面积小、结构简单、合理。
2.物料可向上输送，亦可向下输送。
3. 动力消耗小、无噪音、维修方便。
4.封闭式提升有效的防止了粉尘和有害气体对工作环境的污染。
技术参数 Technical parameters
|
型号 |
输送量(t/h) |
输送槽直径(mm) |
输送宽度(mm) |
输送高度(m) |
振次(min) |
双振幅(mm) |
电动功率(kw) |
重量(kg) |
|
DZC300 |
～1.0 |
300 |
77 |
≤2.0 |
960 |
6～7 |
2×0.4 |
680 |
|
DZC500 |
～2.0 |
500 |
140 |
≤3.0 |
6～8 |
2×0.75 |
1010 |
|
|
DZC550 |
～3.0 |
550 |
152 |
≤3.5 |
6～8 |
2×1.5 |
1190 |
|
|
DZC600 |
～3.0 |
600 |
163 |
≤4.0 |
6～7 |
2×1.5 |
1320 |
|
|
DZC800 |
～4.0 |
800 |
224 |
≤4.5 |
6～8 |
2×2.2 |
1590 |
|
|
DZC850 |
～4.0 |
850 |
224 |
≤5.0 |
6～9 |
2×2.2 |
1750 |
|
|
ZC900 |
～3.5 |
900 |
185 |
≤6.0 |
6～9 |
2×3.0 |
2100 |
