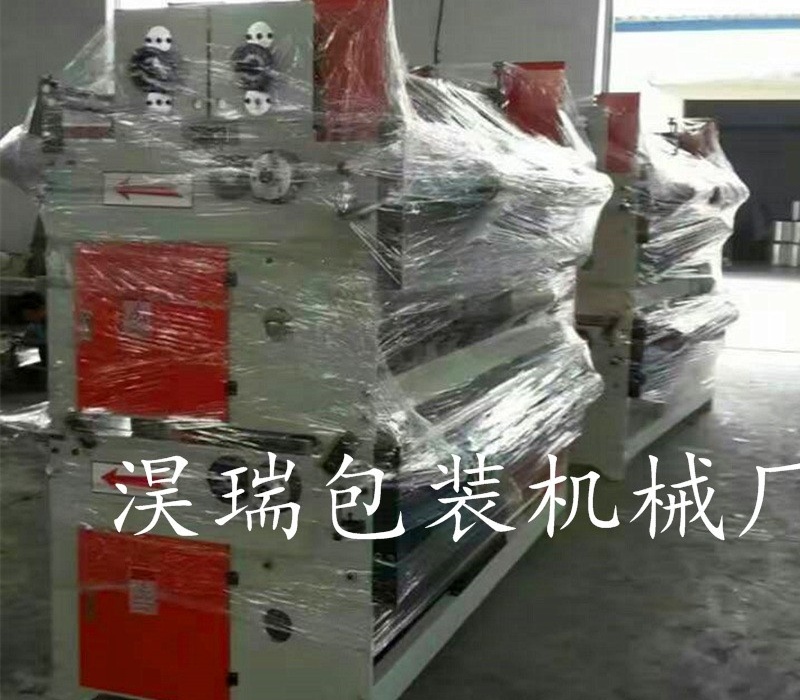

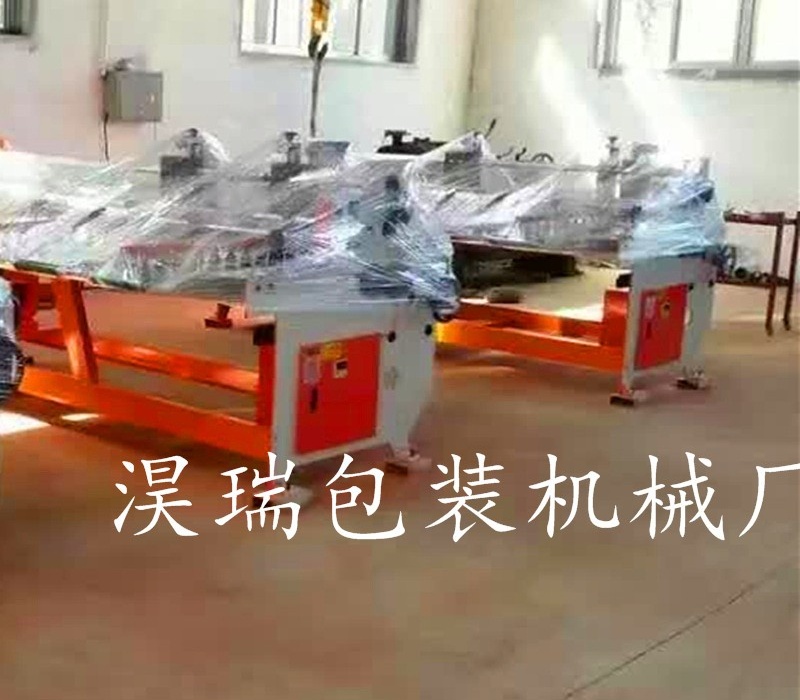

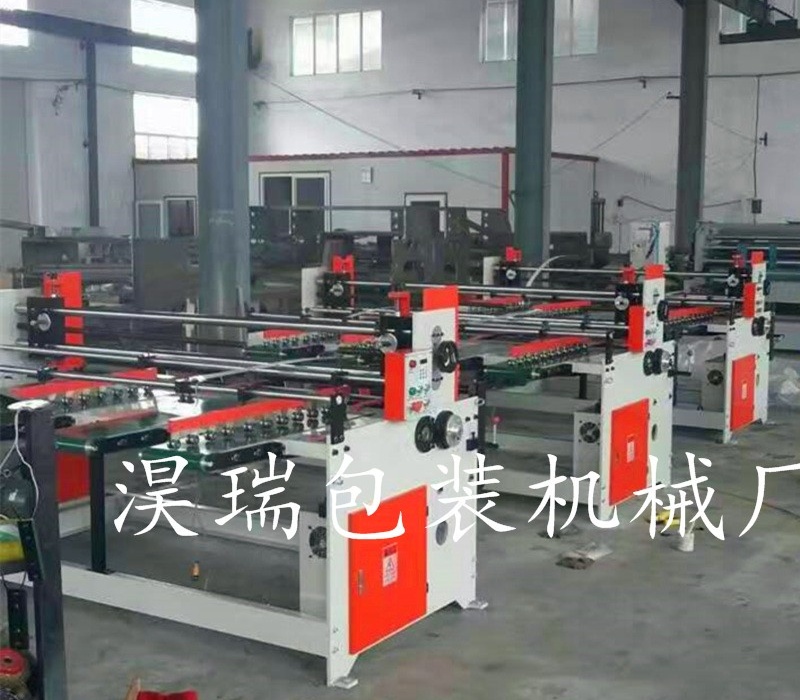

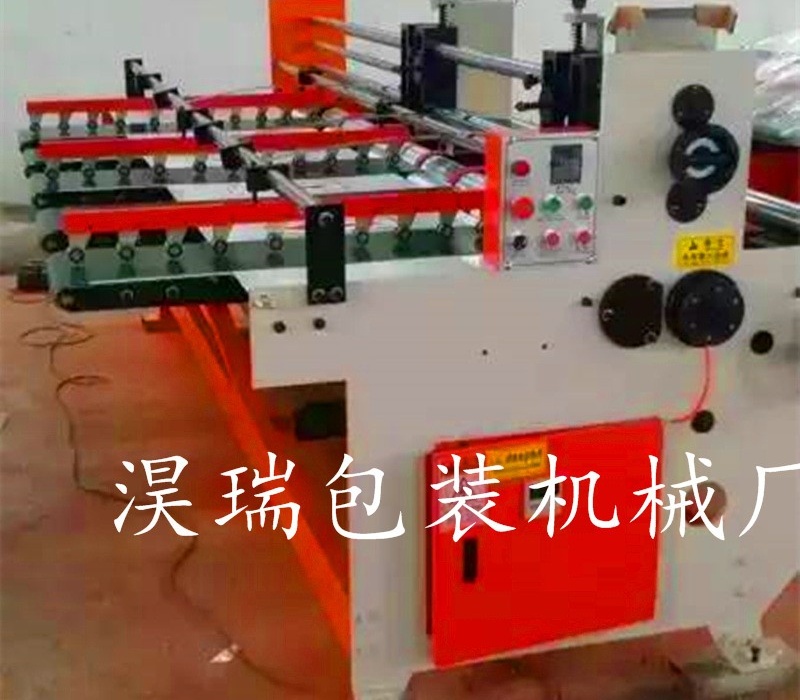

自动输纸机是针对纸箱厂原有链条送纸的纸箱印刷、成型机械无法连续大批
量生产所研发生产的连续输纸设备．从而改人工单张送纸为连续送纸．保证纸板走
正．不但提高工作效率．而且大副降低工人劳动强度．又降低废品率。
Paper transport machine is aim at cardboard box
factow originaI chain the cardboard box which send
paper printing．model a machine can’t continuous
the large quantity quantity produce development
produce of continuous lose a paper equipments．
change artificial thus list Zhang Song4 Zhi3 for con-
tinuous send paper．assurance the carton walk posi—
tive，not only exaltation work efficiency．and the first
mate lower a worker labor strength．again lower to
discard an article rate
纸板尺寸调节采用丝杆调整机构．一人操作．简易迅速。
方便可调码纸台．更好地适应各种纸板．而且送纸稳定准确。
进纸皮带采用**橡胶无缝带．摩擦力大．寿命长．低噪音，易保养．经济效益高。
双张力控制．方便可靠。
传动轴采用花纹辊．增加与输纸皮带的摩擦．保证纸板输送顺畅高速。
本机具有电磁离合器分离制动机构。
本机电器采用PLC自动程序控制．自动化程度高。
变频器驱动电机．实现调速运转稳定。
光电信号通过PLC控制电磁离合制动．实现与主机同步。
电气件采用国际和国内知名品牌．确保机器运行稳定。
The canon size regulate adoption silk a pole to adjust organization．one person
operation，simple quick．
Convenience adjustable code paper set，betterly the orientation be various
cartOn．and send paper stability accurate
Enter paper Ieather belt an adoption superior quality the rubber have never
sew to take．friction big．1ife span long．10w noise，easy maintain．economy
performance Gao
Double tension contr01．convenience cradibility．
Spread to move stalk adoption wood grain Gun．increment with lose paper
Ieather Pelt of rub．assurance the carton transport smooth high speed．
This machine tooI has an electromagnetism clutch to separate to make to move
organization．
This machine electric appliances adoption PLC auto procedure controI．
automation degree Gao．
Change the Pin machine ddve electricaI engineering and the realization adjust
soon an operation stability
The light telecommunication number pass PLC a controI electromagnetism to
Ieave to match to make to move．realization and host synchronous．
Electricity piece adoption nations and Iocal well-known brand．insura machine to
circulate stability
用途与特点：
该机型具有地址吸风皮带输送功能．较好的解决了瓦楞纸
的拱翘难题。采用底纸推规走纸的方式．定位准确、方便．
平稳．速度快、噪音低．从而确保机械性能的稳定，可靠。
用户可根据需要采用对齐．超前两种贴合功能。
Purpose and Characteristics：
This machine has adsorbing wind belt transmission function，and
settle the problem of corrugating paper arch and hold up Adopt bottom
paper pushing feeding paper,orientation exact，convenience stable，high
speed．10w noise．Ensure the machine capability stable and reliable，users
can adopt two jointing function of in—phase and front according to self’s
need
技术参数:
|
型号 |
SZJ-2700 |
SZJ-2500 |
SZJ-1800 |
|
|
外形尺寸 （mm） |
2900*1700*1400 |
2700*1700*1400 |
2000*1700*1400 |
|
|
电机功率 （kw） |
2.2 |
2.2 |
2.2 |
|
|
最大过纸宽度（mm） |
印刷机推纸器间距-200mm |
印刷机推纸器间距-200mm |
印刷机推纸器间距-200mm |
|
|
最小过纸宽度（mm） |
270 |
270 |
270 |
|
|
最大过纸长度（mm） |
2200 |
2200 |
2200 |
|
|
最小过纸长度（mm） |
500 |
500 |
500 |
|
|
生产速度（p/min） |
50-80 |
50-80 |
50-80 |
|
|
机器重量 （kg） |
1000 |
1000 |
1000 |
|
|
风机功率 （kw） |
4.0kw |
4.0kw |
3.0kw |
上海 |
|
吸风带 |
1280 |
1280 |
1280 |
浙江 |
|
电磁离合 |
80 |
80 |
50 |
浙江 |
|
变频器 |
3.0 |
3.0 |
2.2 |
深圳 |
|
电机 |
2.2 |
2.2 |
1.5 |
上海 |
