用途与特点： ★本机采用水溶油墨FLEXO使印刷品清色美观。 ★网目轮选名牌厂家、特殊处理、印刷均匀、图案精美、细 字清晰。 ★橡胶轮设有自动运转装置，当机械暂时停止印刷时，水墨 不会干涸。 ★印刷轮可左右横调20mm刻有中心线，便于正确校正，并

可作360o电动相位寸动微调。 ★印刷部采用轨道滑行、气动锁紧、手动开合、轻便调校。 ★齿轮传动采用循环润滑供油系统减低噪音，延长齿轮工作

寿命，同时提高套色准确度。 ★全部电器、电子气动组件采用进口名牌保证质量。 ★本机有单色、双色、三色、四色可供客户选择。

技术参数 ：Technological parameter:

Use and characteristics:

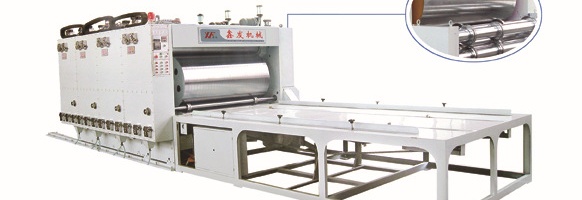

★ The machine uses water-soluble printing in FLEXO to make clear and beautiful presswork.

★ Anilox roller specially processed by renowned manufacturer can evenly print exquisite images and clear texts.

★ Rubber roller is equipped with automatic rotating device to stop printing ink from drying even when the machine stops printing temporarily.

★ Printing wheel can be adjusted either leftwards or rightwards for 20mm and phase-adjusted within 360o phase.The central line in the printing wheel can be used for calibration.

★ Gear transmission uses circulating lubrication oil supply system to minimize noise and extend service life of gear and improve the precision of chromatic printing.

★ All electrical appliances and electronic pneumatic components are of renowned brands importedfrom abroad to ensure high quality.

★ The machine has single-color,double-color,three-color and four-color available for option.

型号Model SYF—1600*2500 SYF—1800*3140
颜色数量The number of four-color color color color 双色四色双色
**生产速度The maximum production speed 70张/分70张/分70张/分
最大进纸尺寸 Maximum feed size 1950×2500mm 1950×2500mm 2100×3140mm
最小进纸尺寸 Minimum feed size 350mm 350mm 450mm
最大印刷尺寸 Maximum print size 1600×2500mm 1600×2500mm 1800×3140mm
适应纸板厚度 To adapt to the thickness of cardboard 2-11mm 2-11mm 2-11mm
标准印版厚 Standard plate thickness 7mm 7mm 7mm
总功率 Total power 7.5KW 15KW 10KW
重量 Weight7000kg 11500kg 13500kg
